High Temperature Balanced Zero Regulators (BZR)

Request Additional Information

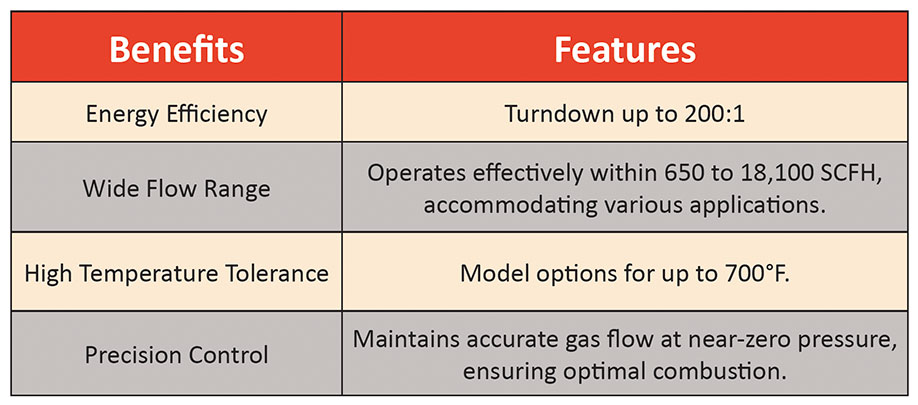

The Selas BZR (Balanced Zero Regulator) is engineered for energy efficiency, reliability, and precision in gas flow control across various combustion systems. Featuring a robust, large diaphragm, this regulator operates seamlessly within a 650 to 18,100 SCFH flow range. These models are designed to function effectively in ambient temperatures up to 700°F.

How It Works

These zero pressure balanced regulators are used for precise control of heated gases or for equipment locations subjected to high ambient temperatures.

The BZR-300 series is designed for continuous operation up to 300°F and to resist corrosion from high sulfur or other corrosive gases.

The BZR-500 series is designed for continuous operation up to 500°F and to resist corrosion from high sulfur or other corrosive gases.

The BZR-700 series is designed for continuous operation up to 700°F and for flow ratio control of high-temperature vaporized fuels. Its construction features a stainless steel main and balancing diaphragm and stainless steel valve disc with high-temperature gasketing.

The high temerature BZR lineup duplicates the precise control characteristics of the standard BZR balanced regulators. They automatically adjust valve position to hold a desired precise outlet pressure. Slight variations in inlet pressure do not affect the performance.

Model Overviews

BZR-300

Designed for service in ambient temperatures up to 300°F (149°C).
Maximum inlet pressure: 2.0 psig
Eliminates need for remote location and compensation in reasonably high ambient temperature applications.

BZR-500

Designed for service in ambient temperatures up to 500°F (260°C).
Maximum inlet pressure: 5.0 psig
An extension part raises the main diaphragm assembly 12 inches above the valve body.

BZR-700
