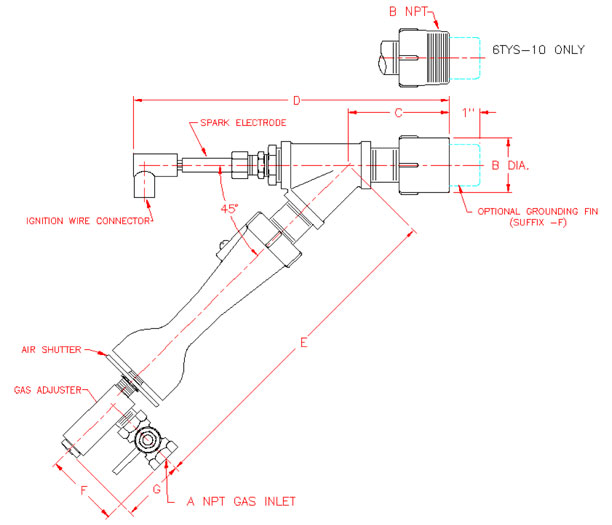

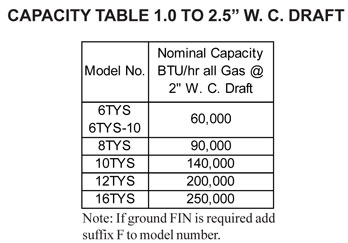

High Capacity Draft-Lite Pilots are designed for 1.0” to 2.5” W. C. draft conditions. For use where draft and burner size require a heavier pilot flame. The 6TYS-10 pilot has a threaded nozzle for use in Style B cages.
A spark electrode with angle connector centered between nozzle pilot parts ensures pilot ignition.
TYS (Torch, 45° angle, spark ignited) pilot burners include adjustable Lojectors and AN nozzles typical to type T torches (Bulletin 3215).
